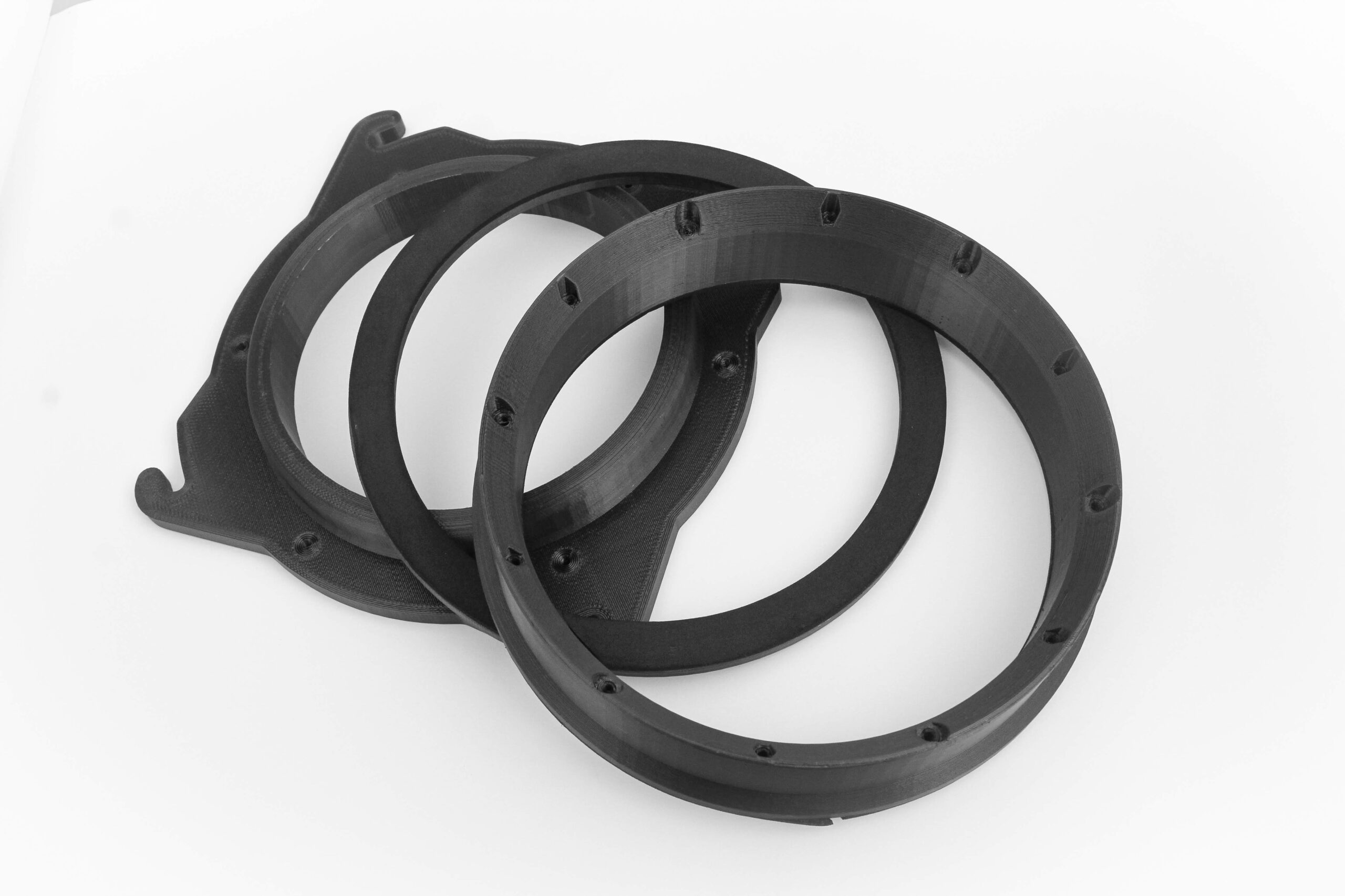

PC is a high-performance 3D printing filament made from polycarbonate, offering exceptional strength, toughness, and heat resistance for demanding applications. Its superior mechanical properties and excellent printability make it ideal for functional prototypes, durable end-use parts, and engineering-grade projects. A wide variety of colors is available and can be printed at request.
Parts will be printed and priced in uploaded orientation. When uploading a part, take into consideration how orientation affects strength in different directions, the amount of support needed, and print time. More details about orientation and print quality can be found in our Help Center.
Color & Finishes
White
Black
Custom
Prints with 0.8mm Shell thickness and 15% Infill
Prints with 1.2mm Shell thickness and 35% Infill
Prints with 1.6mm Shell thickness and 70% Infill
Prints fully solid models
Technology
- Fused Deposition Modeling (FDM)
Material Properties
Description
Design Guidelines
Bounding Box
Maximum Bounding Box
300x300x300 mm
Minimum Bounding Box
10 x 10 x 1 mm
The bounding box is a 3D imaginary outline of a box that encloses the smallest area occupied by your model. Your model must be within the minimum and maximum bounding box sizes. If the size of the model is close to the maximum bounding box, then the printing orientation will be restricted.
Walls
1 mm
A supported wall is connected at least on two sides of the wall, while an unsupported wall is connected only on one side of the wall. Walls that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wall geometry of the model. Please consider the size of your model and reinforce the walls or add support structures as needed as minimum guidelines will not always be adequate for large models.
Wires
1.5 mm
1.5 mm
A wire is a circular, rectangular or even triangular feature that is thinner in its unconnected directions than its length. A supported wire is connected at least on two sides of the model, while an unsupported wire is connected on one side of the model. Wires that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wire geometry of the model. Please consider the size of your model and reinforce the wires or add support structures as needed as minimum guidelines will not always be adequate for large models.
Details
0.2 mm
0.2 mm
For text, the ratio between width and depth, should be 1:1 and sans-serif fonts are preferred for line weight consistency.
Clearance
0.5 mm
Clearance is the space between two individual parts in a model. If the space among the individual parts do not meet the minimum clearance, then parts can fuse together or can be difficult to clean. This is important for movable pieces like hinges, gears, etc.
Sprues
Sprues are wires that keep two or more parts together. Parts should be connected with a minimum of two sprues each. Please consider the size of your sprues and increase them as needed as minimum guidelines will not always be adequate for large models. If the sprues are within the guidelines and are broken, but there is no damage to your model, we will still ship them as is.
Interlocking & Enclosed Parts
Interlocking
Not supported
Enclosed
Not supported
Multiple Parts
Parts in File
1
Accuracy
±0.1 mm to ±0.3 mm
