TGM-7 High Detail Resin
TGM-7 High Detail Resin
Material Info
About

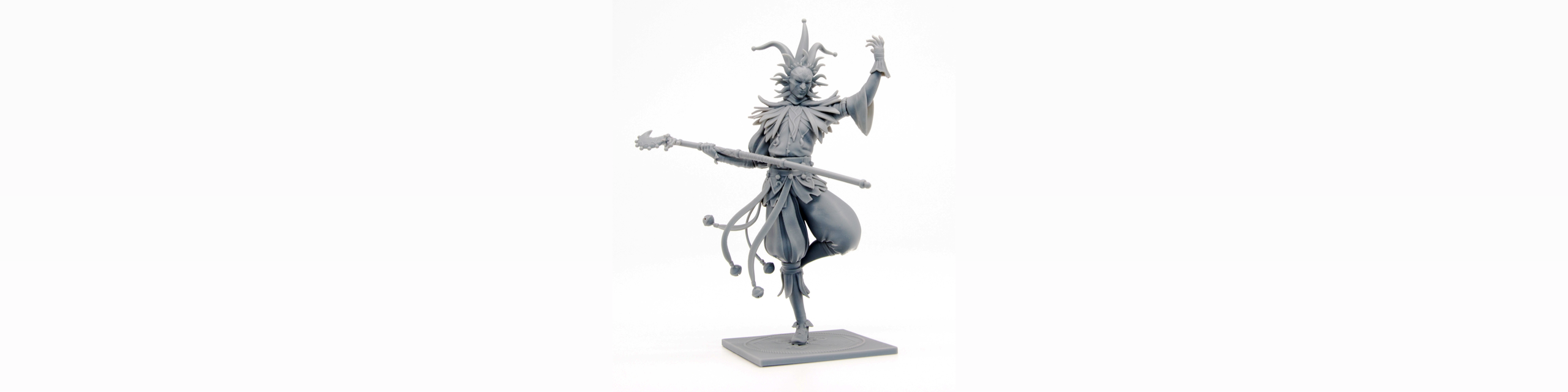

A high-detail gray resin optimized for tabletop gaming miniatures, figurines, and collectibles.
TGM-7 combines a hard, smooth surface with balanced toughness and flexibility, so thin parts and sharp details survive handling and global shipping.
Color & Finishes
Grey
Supports are removed, then parts are alcohol-cleaned, dried, and fully cured for safe, ready-to-paint use.
Technology
- Stereolithography [SLA]
Material Properties
Description
Design Guidelines
Bounding Box
Maximum Bounding Box
218 × 122 × 260 mm
Minimum Bounding Box
X + Y + Z > 12mm
The bounding box is a 3D imaginary outline of a box that encloses the smallest area occupied by your model. Your model must be within the minimum and maximum bounding box sizes. If the size of the model is close to the maximum bounding box, then the printing orientation will be restricted.
Walls
0.8 mm
A supported wall is connected at least on two sides of the wall, while an unsupported wall is connected only on one side of the wall. Walls that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wall geometry of the model. Please consider the size of your model and reinforce the walls or add support structures as needed as minimum guidelines will not always be adequate for large models.
Wires
0.8 mm
1.0 mm
A wire is a circular, rectangular or even triangular feature that is thinner in its unconnected directions than its length. A supported wire is connected at least on two sides of the model, while an unsupported wire is connected on one side of the model. Wires that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wire geometry of the model. Please consider the size of your model and reinforce the wires or add support structures as needed as minimum guidelines will not always be adequate for large models.
Details
0.1 mm
0.1 mm
For text, the ratio between width and depth, should be 1:1 and sans-serif fonts are preferred for line weight consistency.
Escape Holes
4 mm
3.5mm
Escape holes are necessary to empty the support material of a hollow model. Two escape holes at the opposite ends of the model is optimal for the support removal process. Please consider the size of your model and make the escape holes bigger or add more escape holes as needed as minimum guidelines will not always be adequate for large models.
Clearance
0.5mm
Clearance is the space between two individual parts in a model. If the space among the individual parts do not meet the minimum clearance, then parts can fuse together or can be difficult to clean. This is important for movable pieces like hinges, gears, etc.
Sprues
Sprues are wires that keep two or more parts together. Parts should be connected with a minimum of two sprues each. Please consider the size of your sprues and increase them as needed as minimum guidelines will not always be adequate for large models. If the sprues are within the guidelines and are broken, but there is no damage to your model, we will still ship them as is.
Interlocking & Enclosed Parts
Interlocking
Not Supported
Enclosed
Not Supported
Multiple Parts
Parts in File
10
Accuracy
±0.2% (with a lower limit of ±0.2 mm)
